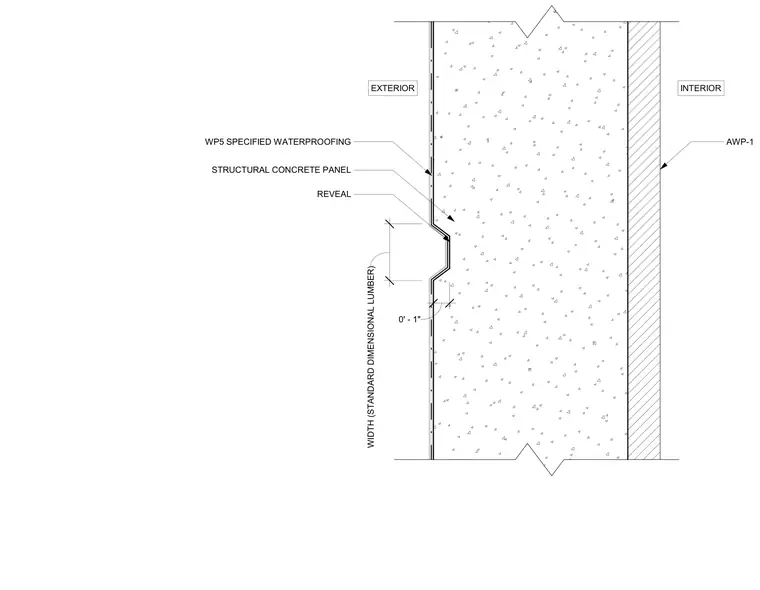

A structural concrete panel features a one-inch wide reveal formed by standard dimensional lumber. The exterior face is treated with WP5 specified waterproofing, while the interior face receives AWP-1 finish.
INTERIOR EXTERIOR WIDTH (STANDARD DIMENSIONAL LUMBER) 0' - 1" STRUCTURAL CONCRETE PANEL REVEAL WP5 SPECIFIED WATERPROOFING AWP-1
