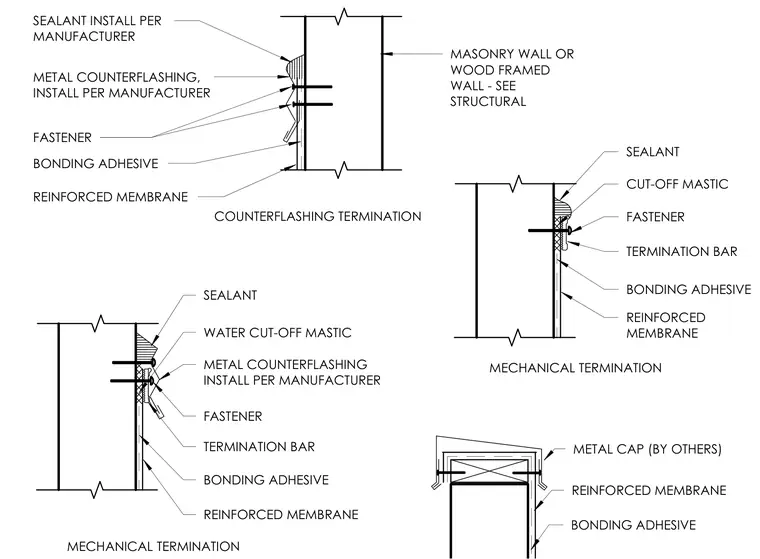

Various membrane flashing termination details show reinforced waterproofing membranes adhered to masonry or wood framed walls using bonding adhesive. Mechanical terminations incorporate termination bars secured with fasteners, water cut-off mastic, and sealant installed per manufacturer specifications. Counterflashing installations feature metal flashings secured with fasteners and sealed at the top edge. A metal cap detail over wood framing is also provided for wall top conditions.
BONDING ADHESIVE REINFORCED MEMBRANE METAL CAP (BY OTHERS) MECHANICAL TERMINATION MECHANICAL TERMINATION REINFORCED MEMBRANE BONDING ADHESIVE TERMINATION BAR FASTENER CUT-OFF MASTIC SEALANT REINFORCED MEMBRANE BONDING ADHESIVE TERMINATION BAR FASTENER METAL COUNTERFLASHING INSTALL PER MANUFACTURER WATER CUT-OFF MASTIC SEALANT COUNTERFLASHING TERMINATION REINFORCED MEMBRANE BONDING ADHESIVE METAL COUNTERFLASHING, INSTALL PER MANUFACTURER SEALANT INSTALL PER MANUFACTURER FASTENER MASONRY WALL OR WOOD FRAMED WALL - SEE STRUCTURAL
