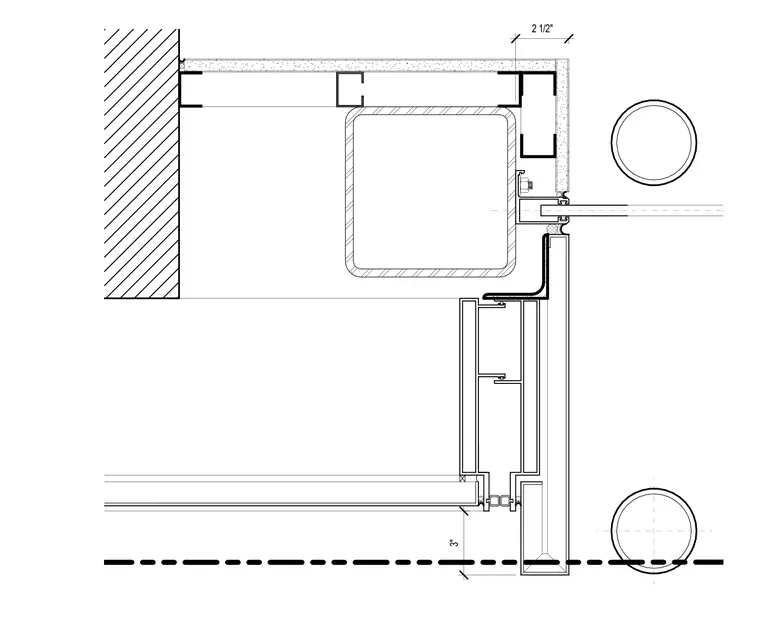

A hollow structural section steel tube supports the rolling door jamb assembly adjacent to a framed wall. Aluminum framing members and angles anchor to the structural tube to form the jamb profile and door track housing. Exterior finishes wrap the assembly with a 2 1/2 inch clearance dimension indicated at the corner condition.
