A curtain track is secured beneath an acoustical ceiling using two-and-a-quarter-inch by number eight self-tapping screws spaced at two feet on center. A one-half-inch diameter spacer sleeve surrounds the fastener at two feet on center. The assembly hangs from a one-and-one-half-inch hot-rolled channel. The channel is supported by a twelve-gauge hanger wire with four twelve-gauge splay wires spaced at four feet on center typical.

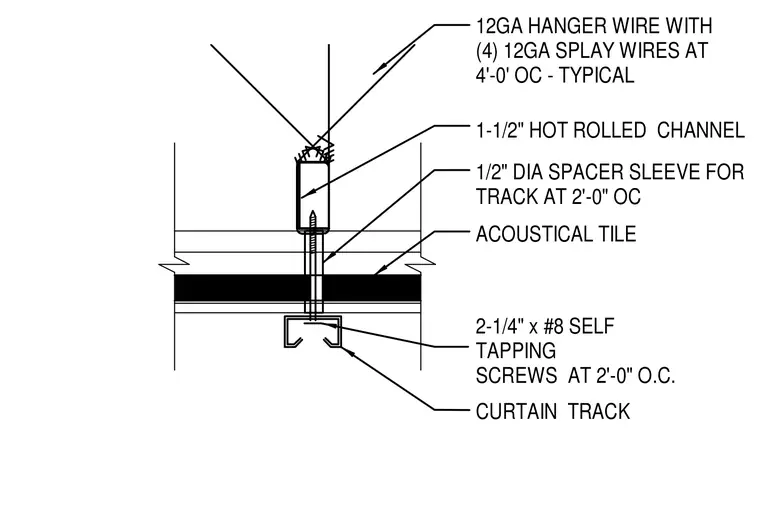

12GA HANGER WIRE WITH (4) 12GA SPLAY WIRES AT 4'-0' OC - TYPICAL 2-1/4" x #8 SELF TAPPING SCREWS AT 2'-0" O.C. CURTAIN TRACK 1/2" DIA SPACER SLEEVE FOR TRACK AT 2'-0" OC 1-1/2" HOT ROLLED CHANNEL ACOUSTICAL TILE
