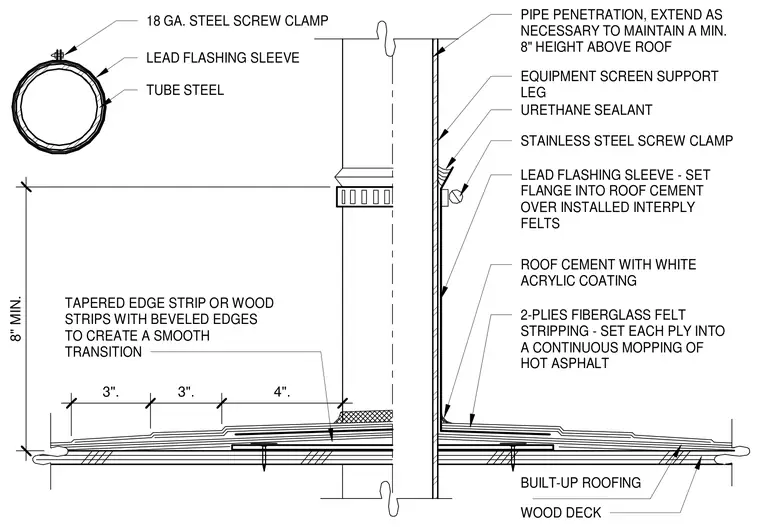

A lead flashing sleeve seals a tube steel equipment screen support leg penetrating a built-up wood deck roof system. The lead flange embeds in roof cement set over installed interply felts, finished with a white acrylic coating over roof cement and two plies of fiberglass felt stripping mopped in hot asphalt. Tapered edge strips or wood strips with beveled edges create a smooth transition at the base. A stainless steel screw clamp and urethane sealant seal the top of the sleeve against the pipe penetration, which extends at least eight inches above the roof surface.
EQUIPMENT SCREEN SUPPORT LEG URETHANE SEALANT STAINLESS STEEL SCREW CLAMP LEAD FLASHING SLEEVE - SET FLANGE INTO ROOF CEMENT OVER INSTALLED INTERPLY FELTS ROOF CEMENT WITH WHITE ACRYLIC COATING 2-PLIES FIBERGLASS FELT STRIPPING - SET EACH PLY INTO A CONTINUOUS MOPPING OF HOT ASPHALT TAPERED EDGE STRIP OR WOOD STRIPS WITH BEVELED EDGES TO CREATE A SMOOTH TRANSITION WOOD DECK BUILT-UP ROOFING PIPE PENETRATION, EXTEND AS NECESSARY TO MAINTAIN A MIN. 8" HEIGHT ABOVE ROOF 18 GA. STEEL SCREW CLAMP LEAD FLASHING SLEEVE TUBE STEEL 3". 3". 4". 8" MIN.
