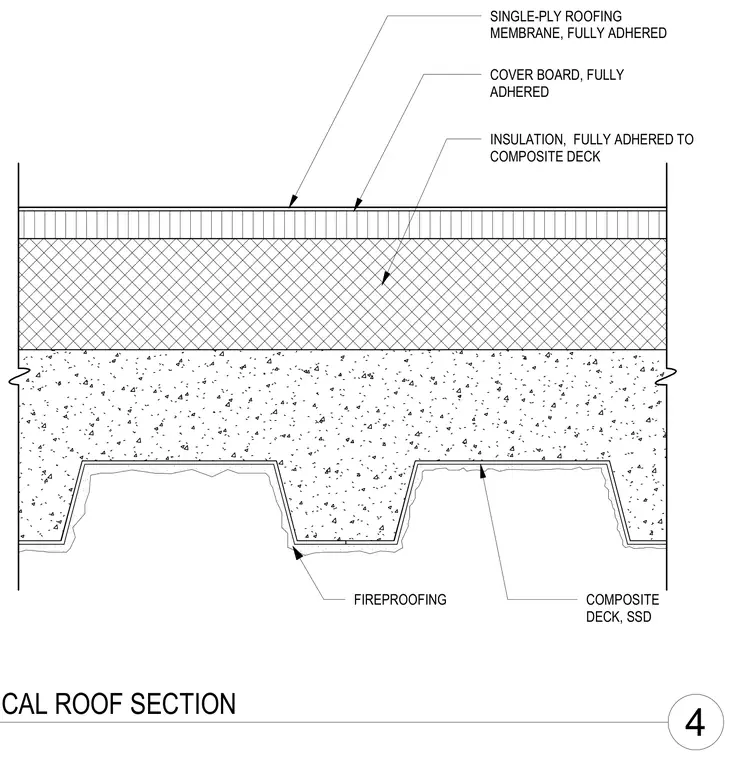

A single-ply roofing membrane is fully adhered above a fully adhered cover board and insulation layer. The insulation bears on a composite metal deck filled with concrete. Fireproofing is applied to the underside of the composite metal deck.
COVER BOARD, FULLY ADHERED INSULATION, FULLY ADHERED TO COMPOSITE DECK COMPOSITE DECK, SSD SINGLE-PLY ROOFING MEMBRANE, FULLY ADHERED FIREPROOFING 4 TYPICAL ROOF SECTION
