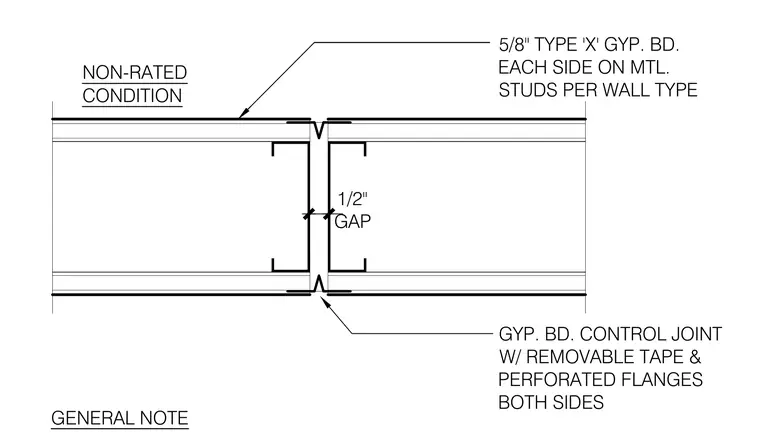

This non-rated condition detail shows five-eighths-inch Type X gypsum board on each side of metal studs per the wall type. A gypsum board control joint with removable tape and perforated flanges is installed on both sides across a one-half-inch gap.
NON-RATED CONDITION GENERAL NOTE 5/8" TYPE 'X' GYP. BD. EACH SIDE ON MTL. STUDS PER WALL TYPE GYP. BD. CONTROL JOINT W/ REMOVABLE TAPE & PERFORATED FLANGES BOTH SIDES 1/2" GAP
