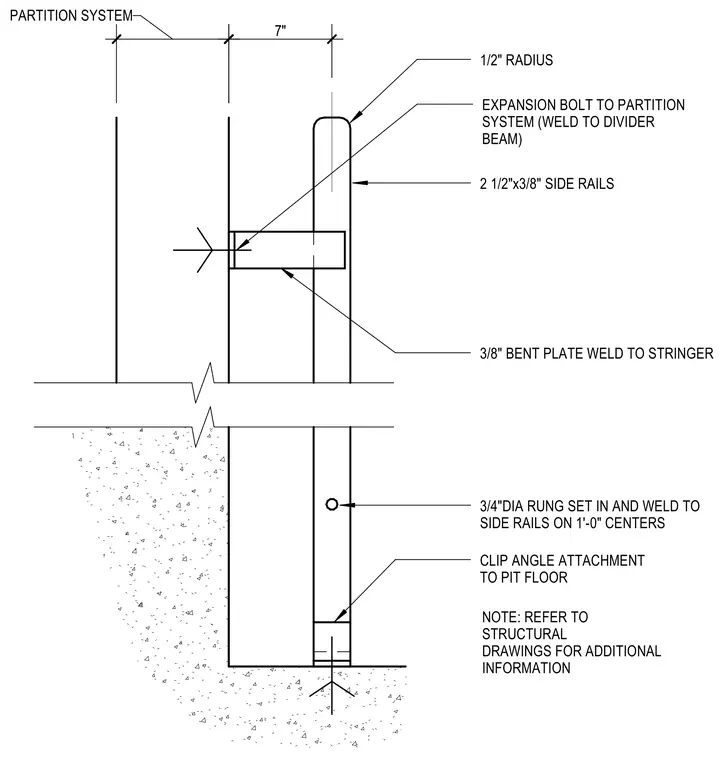

This stair or ladder detail features 2 1/2-inch by 3/8-inch side rails with a 1/2-inch radius top finish, connected to a 7-inch partition system via a 3/8-inch bent plate welded to the stringer and secured with an expansion bolt. Three-quarter-inch diameter rungs are set into and welded to the side rails at 1-foot-0-inch centers. The base of the assembly is anchored to the pit floor using a clip angle attachment. Structural drawings must be referenced for additional information.
1/2" RADIUS 2 1/2"x3/8" SIDE RAILS 3/8" BENT PLATE WELD TO STRINGER 3/4"DIA RUNG SET IN AND WELD TO SIDE RAILS ON 1'-0" CENTERS CLIP ANGLE ATTACHMENT TO PIT FLOOR NOTE: REFER TO STRUCTURAL DRAWINGS FOR ADDITIONAL INFORMATION EXPANSION BOLT TO PARTITION SYSTEM (WELD TO DIVIDER BEAM) 7" PARTITION SYSTEM
