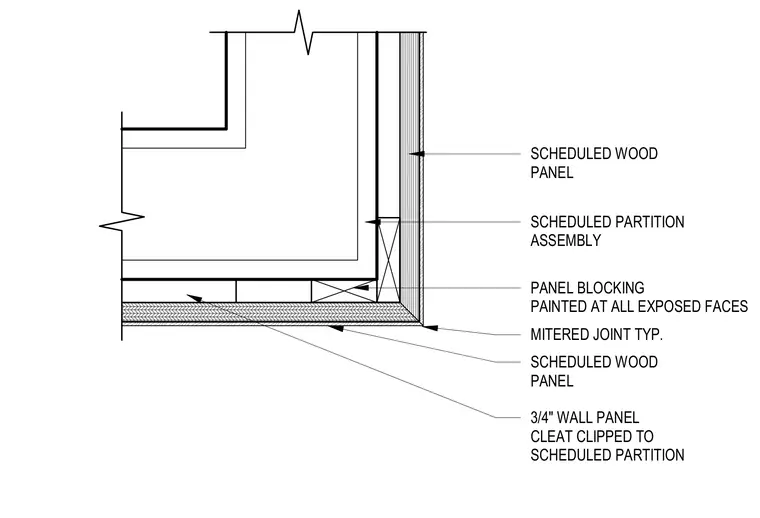

Scheduled wood panels meet at a mitered joint typical at the outside corner of an interior partition. A three-quarter-inch wall panel cleat fastens to the scheduled partition assembly to secure the finish. Panel blocking is installed behind the panels and painted at all exposed faces.
MITERED JOINT TYP. 3/4" WALL PANEL CLEAT CLIPPED TO SCHEDULED PARTITION SCHEDULED WOOD PANEL SCHEDULED PARTITION ASSEMBLY PANEL BLOCKING PAINTED AT ALL EXPOSED FACES SCHEDULED WOOD PANEL
