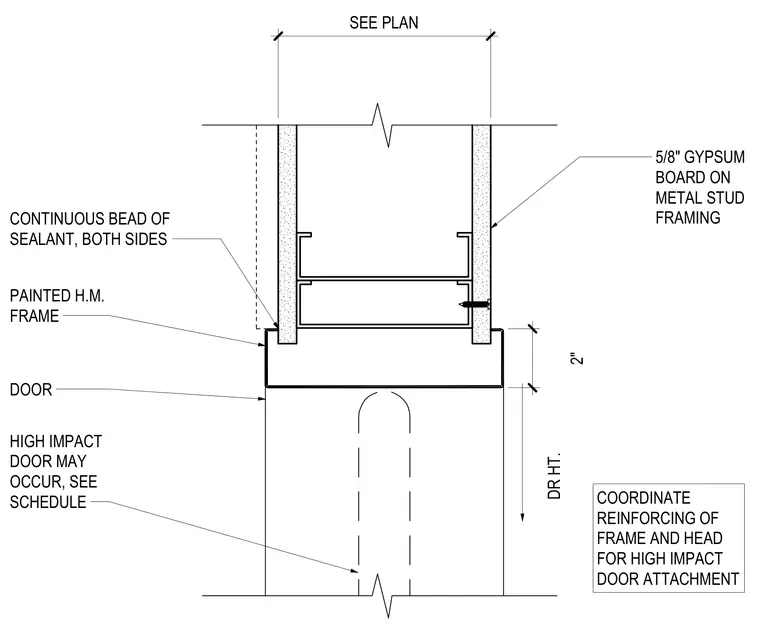

A painted hollow metal door frame connects to a metal stud partition finished with five-eighths inch gypsum board on each side. A continuous bead of sealant is applied at both sides of the frame junction. The detail indicates coordination of reinforcing for the frame and head where high-impact doors occur per the schedule.
2" DR HT. PAINTED H.M. FRAME DOOR HIGH IMPACT DOOR MAY OCCUR, SEE SCHEDULE SEE PLAN 5/8" GYPSUM BOARD ON METAL STUD FRAMING COORDINATE REINFORCING OF FRAME AND HEAD FOR HIGH IMPACT DOOR ATTACHMENT CONTINUOUS BEAD OF SEALANT, BOTH SIDES
