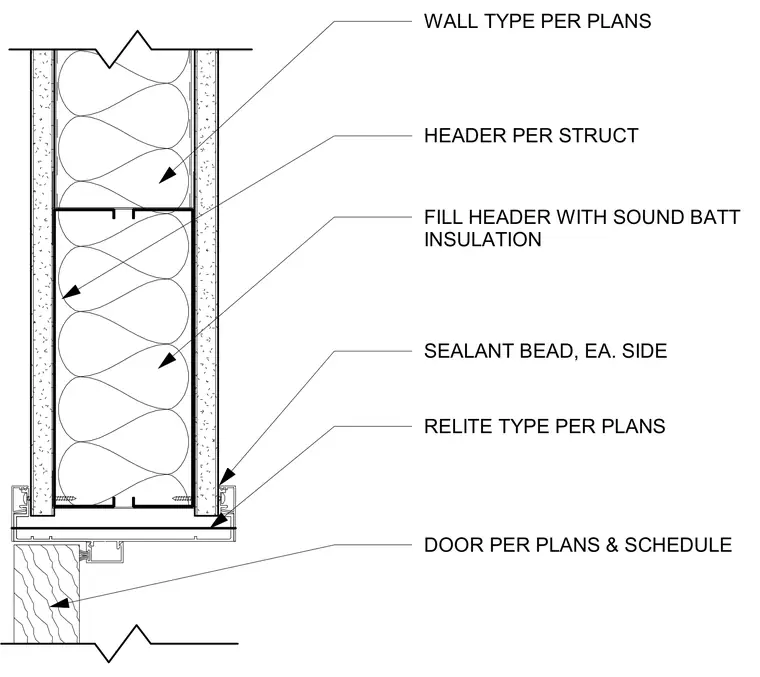

An aluminum relite and door head assembly is integrated into a partition wall framing sized per structural drawings. The wall cavity and the header are filled with sound batt insulation for acoustic control. An aluminum relite frame sits above the door, sealed with a bead of sealant on each side at the gypsum board interface. The door and relite types are installed according to architectural plans and schedules.
WALL TYPE PER PLANS HEADER PER STRUCT FILL HEADER WITH SOUND BATT INSULATION RELITE TYPE PER PLANS DOOR PER PLANS & SCHEDULE SEALANT BEAD, EA. SIDE
