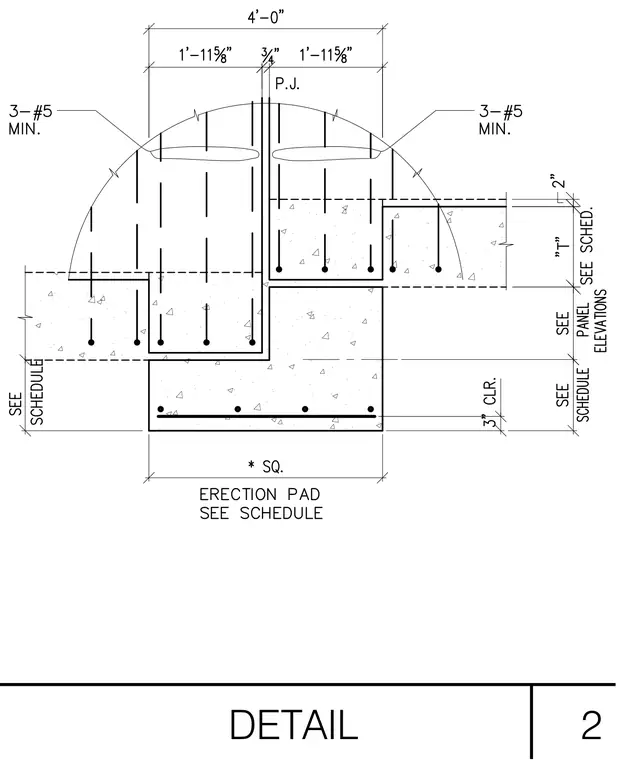

A concrete erection pad detail features a stepped foundation profile with three number five reinforcing bars minimum placed in the upper section and horizontal reinforcement with three inches of clear cover below. A three-quarter inch preformed joint separates adjacent sections above a four-foot overall pad width. Panel dimensions and thickness are referenced from schedules and panel elevations.
