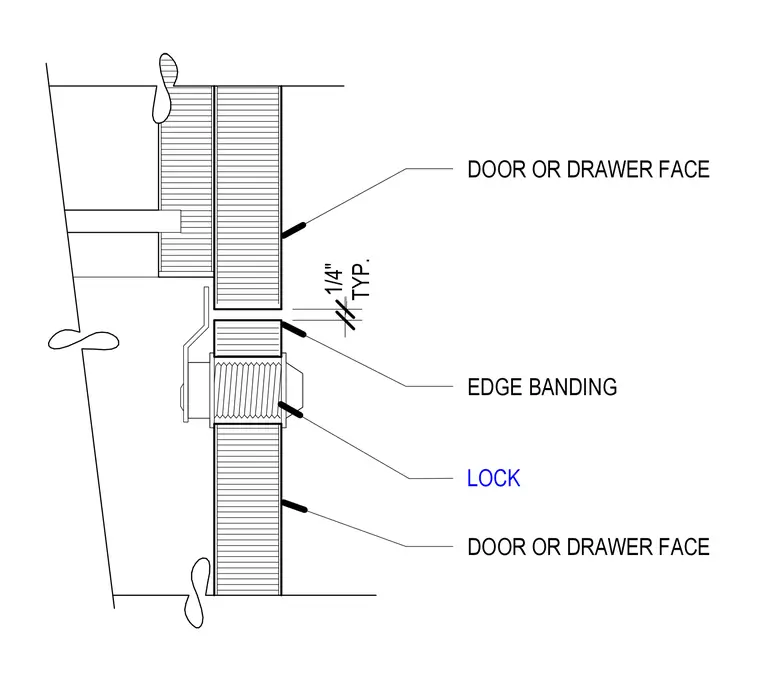

Cabinet drawer or door faces feature edge banding applied to the perimeter with a typical one-quarter inch gap. A lock mechanism integrates into the drawer face assembly adjacent to the edge-banded joint.
DOOR OR DRAWER FACE EDGE BANDING DOOR OR DRAWER FACE TYP. 1/4" LOCK
