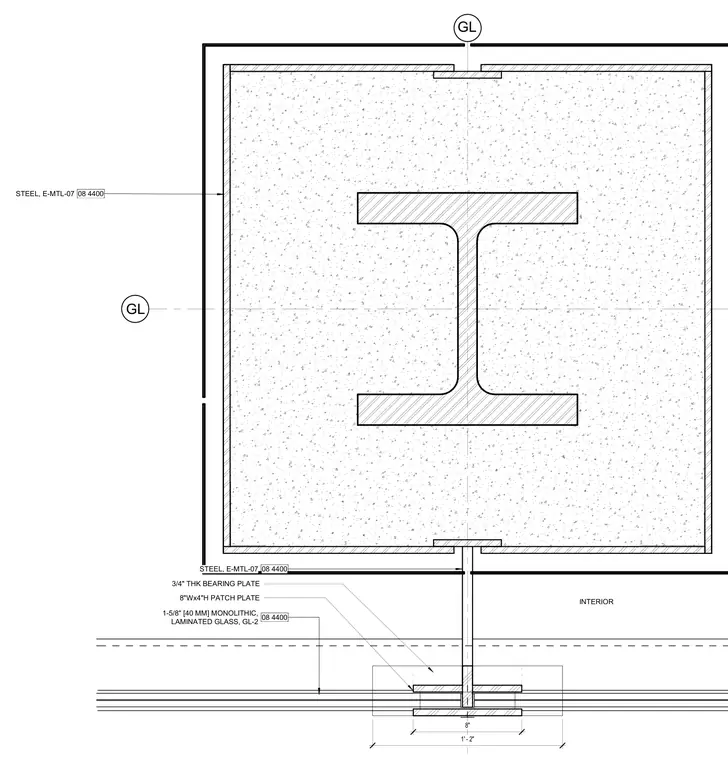

A 1-5/8 inch monolithic or laminated glass panel of type GL-2 connects to a steel column assembly. An 8-inch-wide by 4-inch-high patch plate pairs with a three-quarter-inch-thick bearing plate to secure the glass. Steel framing components are detailed with E-MTL-07 designations.
A 8 GL GL 8" 1' - 2" 3/4" THK BEARING PLATE 8"Wx4"H PATCH PLATE 08 4400 1-5/8" [40 MM] MONOLITHIC, LAMINATED GLASS, GL-2 INTERIOR 08 4400 STEEL, E-MTL-07 08 4400 STEEL, E-MTL-07
