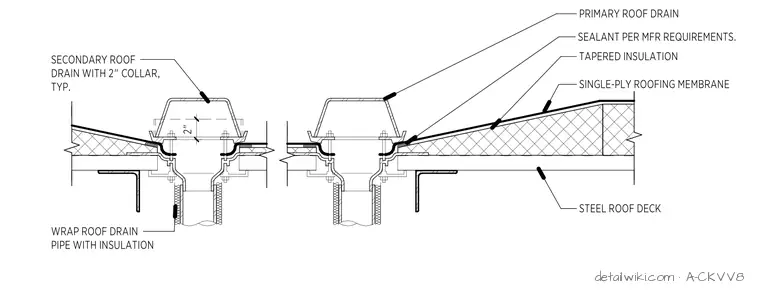

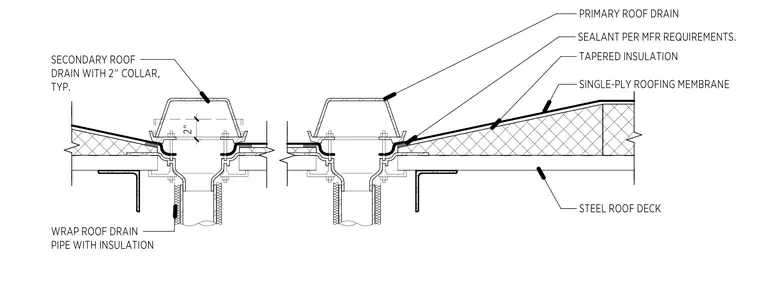

The assembly consists of a primary roof drain and a secondary roof drain installed through a steel roof deck. The secondary drain features a two-inch collar to provide overflow drainage capacity. Both drains are integrated into the roof system, which includes tapered insulation topped with a single-ply roofing membrane. Sealant is applied per manufacturer requirements at the drain flange interface. The roof drain pipe is wrapped with insulation to prevent condensation.
