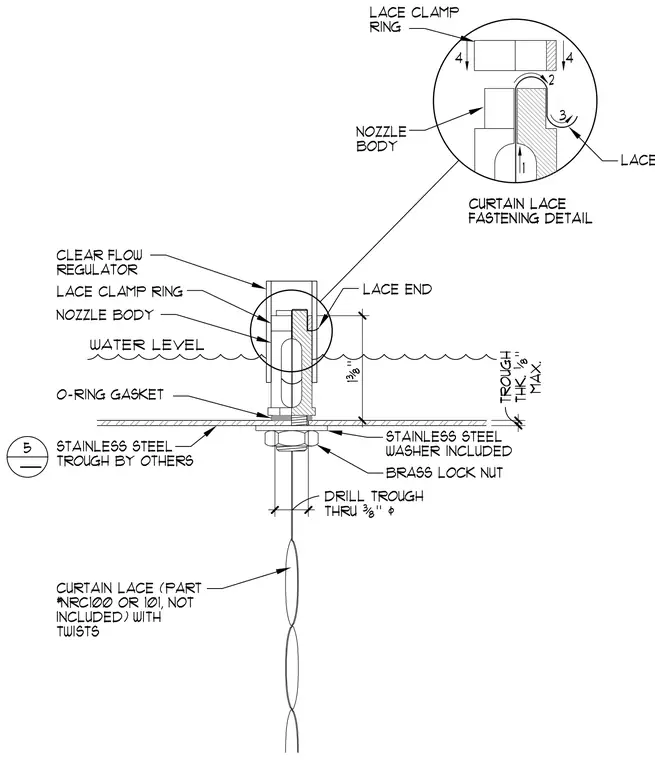

A nozzle body is mounted to a stainless steel trough with a maximum thickness of one-eighth inch using a brass lock nut and stainless steel washer. An O-ring gasket seals the connection at the trough surface, which requires a three-eighth-inch diameter drilled hole. A clear flow regulator surrounds the upper portion of the nozzle body, which features a lace clamp ring securing a curtain lace end. A magnified callout details the curtain lace fastening assembly, showing the engagement between the lace, lace clamp ring, and nozzle body. The curtain lace, designated as part number NRC100 or 101, hangs below with twists and is provided by others.
