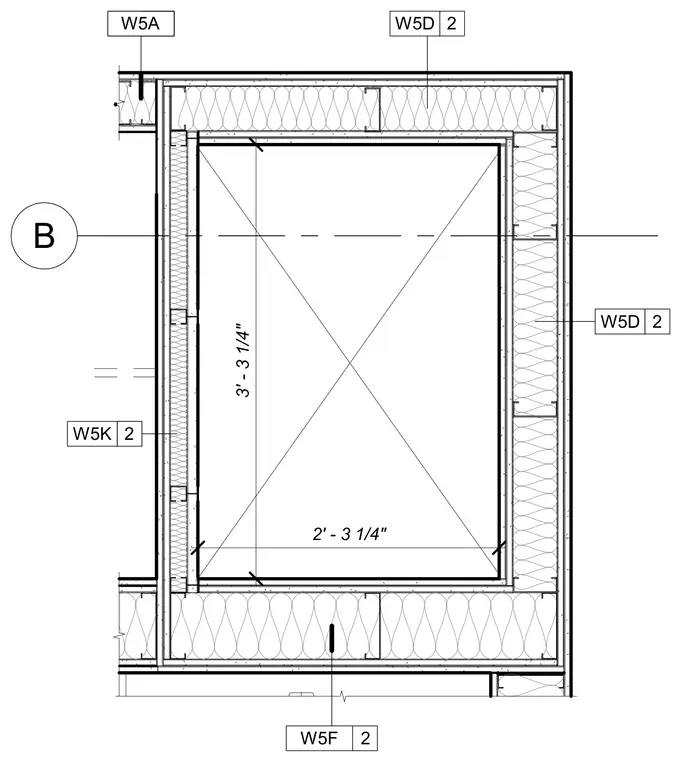

This plan detail shows a framed vertical shaft wall assembly with metal studs and perimeter insulation layers. Dimensions of three feet three and one-quarter inches by two feet three and one-quarter inches define the internal clear space of the shaft. Wall assemblies are designated with detail callouts including W5A, W5D, W5K, and W5F surrounding the shaft perimeter.
