Suspended Ceiling and Partition Junction at Metal Stud Framing

Materials

Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

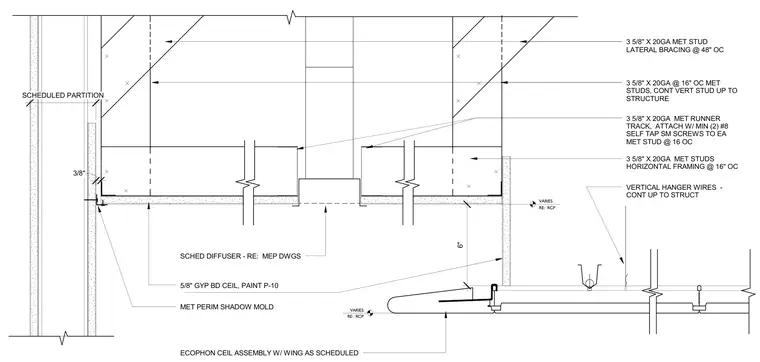

A suspended Ecophon ceiling assembly with a wing meets a scheduled partition finished with a metal perimeter shadow mold and a five-eighths-inch gypsum board ceiling painted P-10. The framing consists of three-and-five-eighths-inch by twenty-gauge metal studs spaced at sixteen inches on center, extending continuously upward to the structure with lateral bracing at forty-eight inches on center. A metal runner track is attached using a minimum of two number eight self-tapping sheet metal screws to each metal stud at sixteen inches on center, with horizontal framing spaced at sixteen inches on center. Vertical hanger wires continue upward to the structure to support the ceiling grid, and a scheduled air diffuser is coordinated with mechanical, electrical, and plumbing drawings.
