Architectural · A-CKGJ2

Casework and Appliance Cabinet Details

Materials

Timber / Wood Masonry / CMU Gypsum / Drywall

Elements

Partitions Doors Ceilings Floors / Slabs Millwork / Casework

About this detail

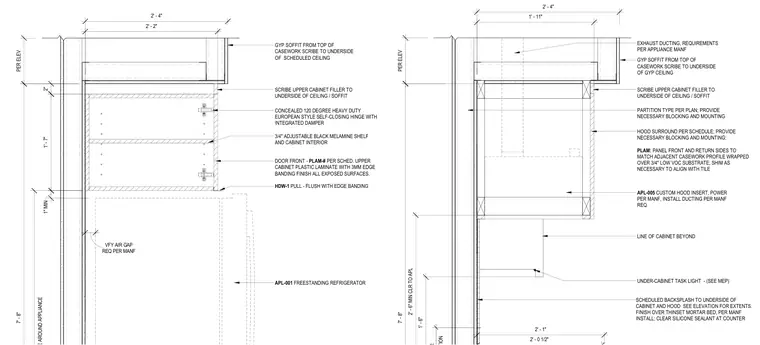

Upper cabinetry and appliance integration includes a freestanding refrigerator and custom hood insert adjacent to a gypsum board soffit and partition wall. Upper cabinets feature plastic laminate with 3-millimeter edge banding on a 3/4-inch low VOC substrate, secured with concealed 120-degree heavy-duty European-style self-closing hinges with integrated dampers and HDW-1 pulls. Adjustable 3/4-inch black melamine shelves fit within the cabinet interior, and upper cabinet fillers scribe to the underside of the scheduled ceiling or gypsum soffit. The refrigerator detail indicates required manufacturer air gaps and clearance to the soffit. The hood surround details include a custom hood insert, exhaust ducting per manufacturer requirements, necessary wood blocking and mounting, and an under-cabinet task light. A scheduled backsplash is installed over a thinset mortar bed with clear silicone sealant at the counter, aligned with adjacent tile and casework profiles.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
