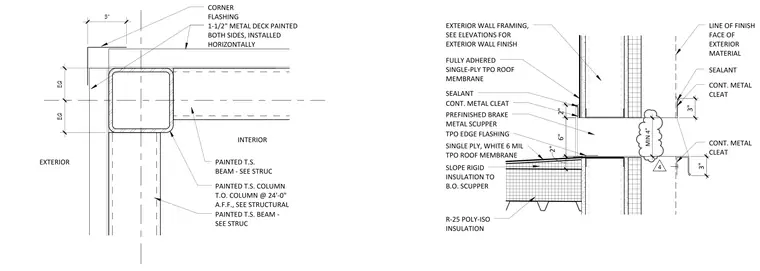

A prefinished brake metal scupper penetrates the exterior wall framing, discharging through a TPO edge flashing tied into a fully adhered single-ply TPO roof membrane. The roof assembly is sloped using rigid insulation over R-25 poly-iso insulation supported by a one-and-a-half-inch painted metal deck. Continuous metal cleats secure the flashing at joints, sealed with joint sealant against the exterior wall finish. The structural support consists of painted hollow structural section columns and beams.
PAINTED T.S. COLUMN T.O. COLUMN @ 24'‐0" A.F.F., SEE STRUCTURAL PAINTED T.S. BEAM ‐ SEE STRUC PAINTED T.S. BEAM ‐ SEE STRUC 1‐1/2" METAL DECK PAINTED BOTH SIDES, INSTALLED HORIZONTALLY CORNER FLASHING EQ EQ 3" EXTERIOR INTERIOR 3" 3" 2" 6" 2" EXTERIOR WALL FRAMING, SEE ELEVATIONS FOR EXTERIOR WALL FINISH FULLY ADHERED SINGLE‐PLY TPO ROOF MEMBRANE SEALANT SLOPE RIGID INSULATION TO B.O. SCUPPER CONT. METAL CLEAT PREFINISHED BRAKE METAL SCUPPER TPO EDGE FLASHING SINGLE PLY, WHITE 6 MIL TPO ROOF MEMBRANE R‐25 POLY‐ISO INSULATION SEALANT CONT. METAL CLEAT CONT. METAL CLEAT LINE OF FINISH FACE OF EXTERIOR MATERIAL MIN 4" 4
