Temple White granite panels clad the central structural column and four surrounding column elements at the exterior perimeter, featuring three-eighths inch joints filled with backer rod and sealant, alongside epoxy joints. The core structural column coordinates with the structural drawings. Overall dimensions establish a three-foot-one-inch square layout with precise spacing for the stone cladding.

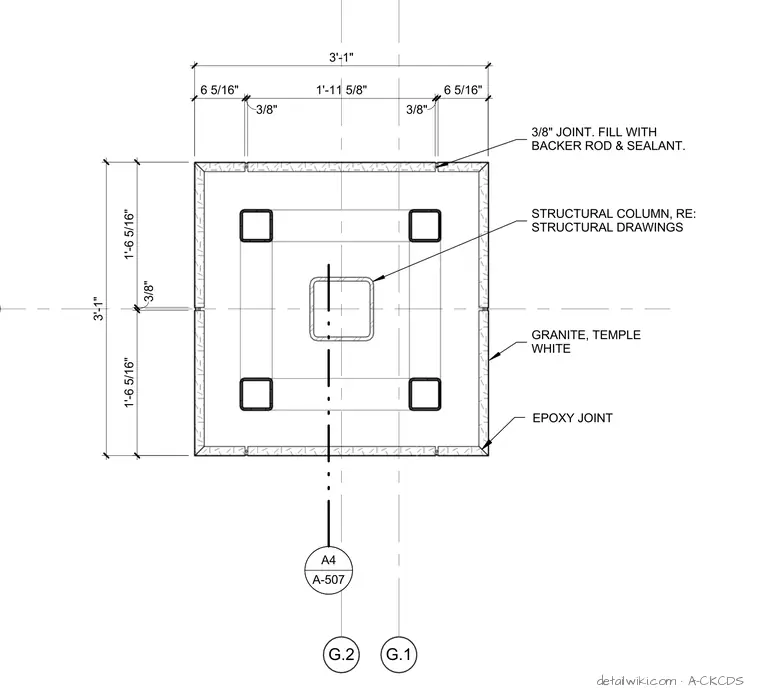

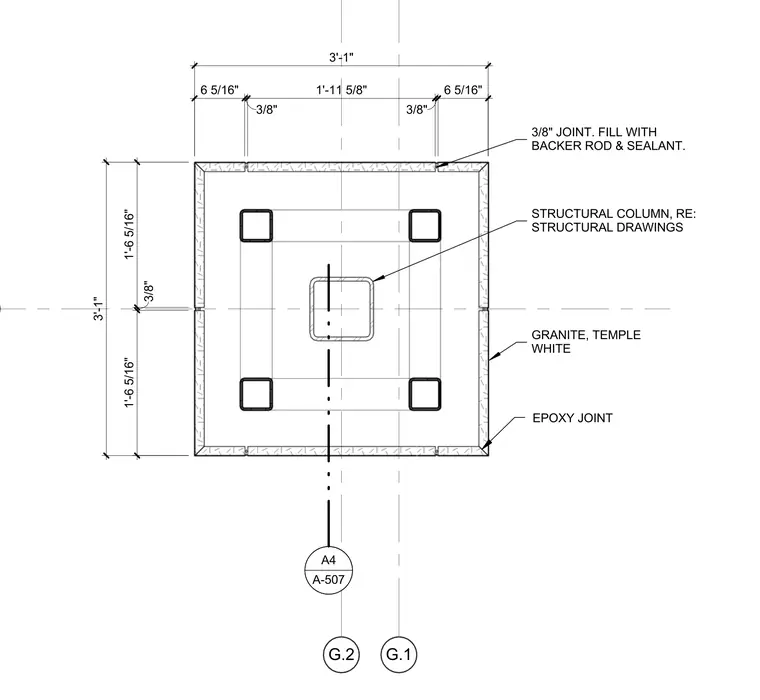

G.1 G.2 A4 A-507 GRANITE, TEMPLE WHITE EPOXY JOINT 6 5/16" 3/8" 1'-11 5/8" 3/8" 6 5/16" 3'-1" 1'-6 5/16" 3/8" 1'-6 5/16" 3'-1" STRUCTURAL COLUMN, RE: STRUCTURAL DRAWINGS 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. DESIGNED AND INSTALLED
