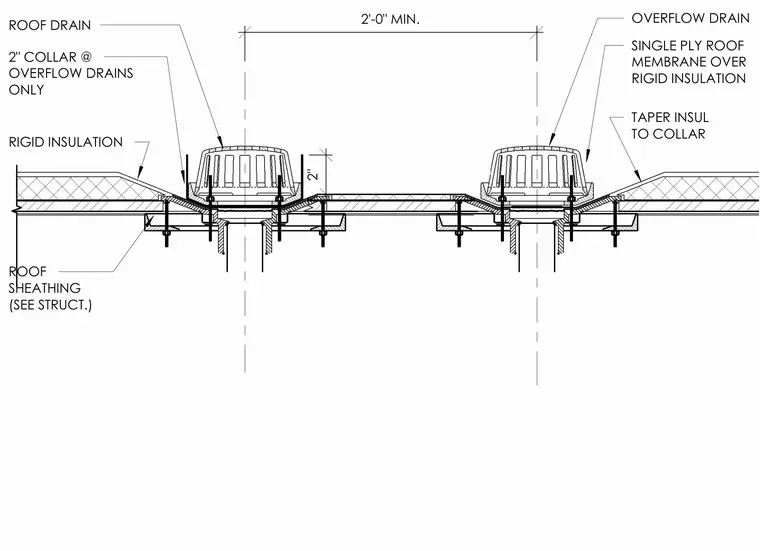

The roof assembly consists of a single-ply roof membrane applied over rigid insulation and wood roof sheathing sized per structural requirements. A primary roof drain and an overflow drain are installed with a two-foot minimum separation. Tapered insulation slopes down to the drain sumps, and a two-inch collar is provided at the overflow drain only.
2'-0" MIN. 2" OVERFLOW DRAIN TAPER INSUL TO COLLAR 2" COLLAR @ OVERFLOW DRAINS ONLY ROOF DRAIN RIGID INSULATION SINGLE PLY ROOF MEMBRANE OVER RIGID INSULATION ROOF SHEATHING (SEE STRUCT.)
