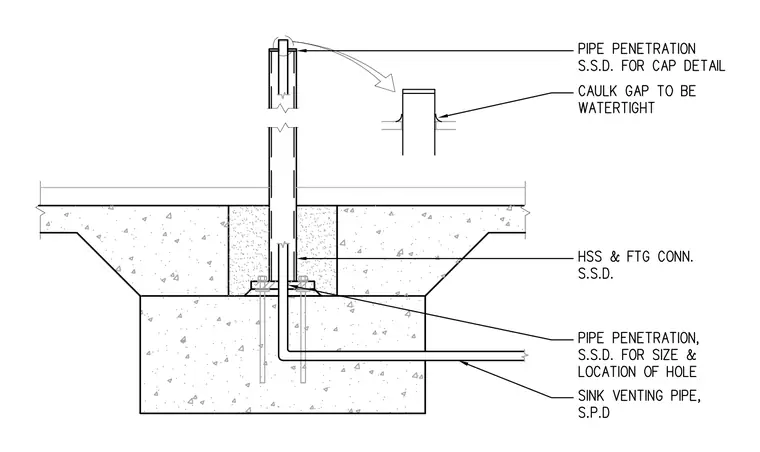

A sink venting pipe penetrates through a concrete footing and slab assembly, anchored at the base with a base plate and anchor bolts. The pipe is housed within a hollow structural section sleeve, with a caulked gap at the top to maintain a watertight seal. The structural footing connection and the specific size and location of the hole are detailed per the structural and plumbing drawings.
