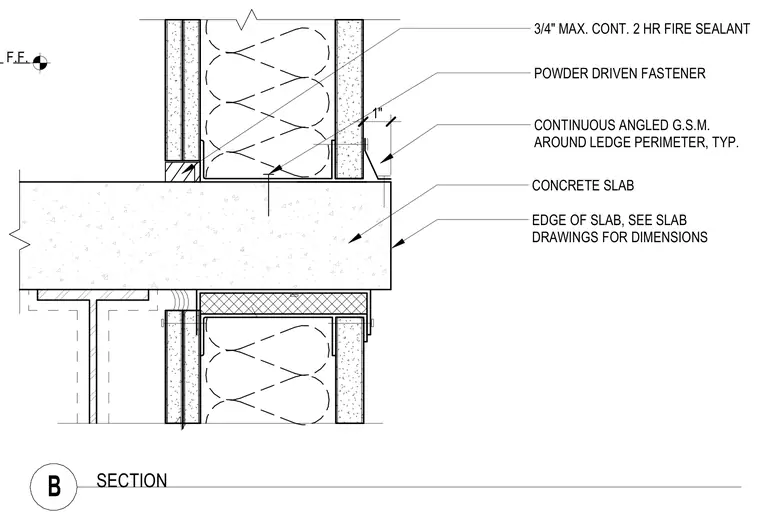

A two-hour shaft wall assembly terminates at a concrete slab edge with continuous angled galvanized sheet metal framing the perimeter. Powder-driven fasteners anchor the assembly to the concrete slab. A continuous two-hour fire sealant fills the joint at the edge of the slab.
B SECTION CONTINUOUS ANGLED G.S.M. AROUND LEDGE PERIMETER, TYP. POWDER DRIVEN FASTENER CONCRETE SLAB 1" 3/4" MAX. CONT. 2 HR FIRE SEALANT EDGE OF SLAB, SEE SLAB DRAWINGS FOR DIMENSIONS F.F.
