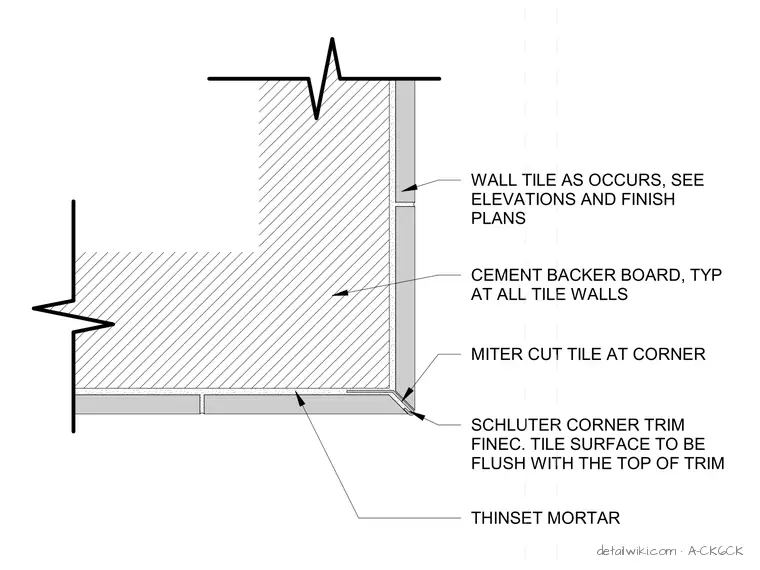

Ceramic wall tile is adhered with thinset mortar over a cement backer board substrate typically specified at all tile walls. The outside corner features miter-cut tile meeting a Schluter metal corner trim piece, with the adjacent tile surface installed flush to the top of the trim.
THINSET MORTAR WALL TILE AS OCCURS, SEE ELEVATIONS AND FINISH PLANS MITER CUT TILE AT CORNER SCHLUTER CORNER TRIM FINEC. TILE SURFACE TO BE FLUSH WITH THE TOP OF TRIM CEMENT BACKER BOARD, TYP AT ALL TILE WALLS
