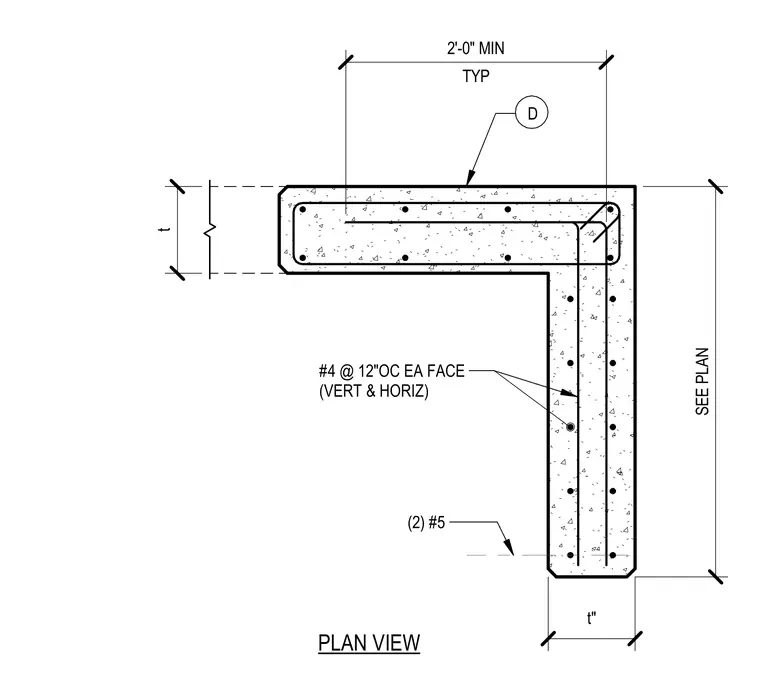

A reinforced concrete wall corner features number four reinforcing bars spaced at twelve inches on center on each face vertically and horizontally, supplemented by two number five bars. The wall has a thickness indicated by variable t, with a two-foot minimum typical return dimension sized per plan.
