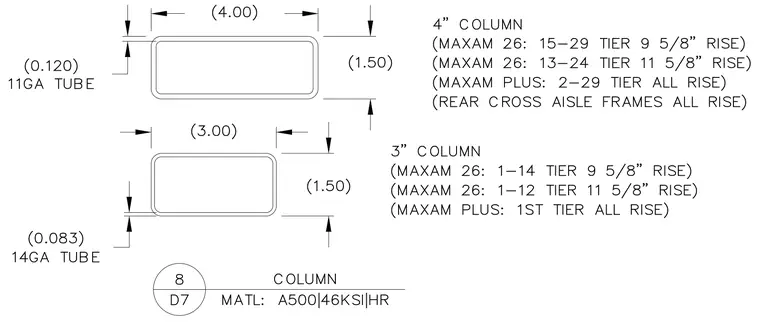

Cross-sectional profiles detail rectangular hollow structural section columns formed from ASTM A500 46 KSI hot-rolled steel. A 4-inch by 1.5-inch tube with an 11-gauge wall thickness of 0.120 inches serves specific tier and frame configurations. A 3-inch by 1.5-inch tube with a 14-gauge wall thickness of 0.083 inches serves alternate tier configurations.
(0.120) 11GA TUBE (4.00) (1.50) (1.50) (3.00) (0.083) 14GA TUBE 3" COLUMN (MAXAM 26: 1-14 TIER 9 5/8" RISE) (MAXAM 26: 1-12 TIER 11 5/8" RISE) (MAXAM PLUS: 1ST TIER ALL RISE) 4" COLUMN (MAXAM 26: 15-29 TIER 9 5/8" RISE) (MAXAM 26: 13-24 TIER 11 5/8" RISE) (MAXAM PLUS: 2-29 TIER ALL RISE) (REAR CROSS AISLE FRAMES ALL RISE) COLUMN 8 D7 MATL: A500|46KSI|HR n ( 9 — J
