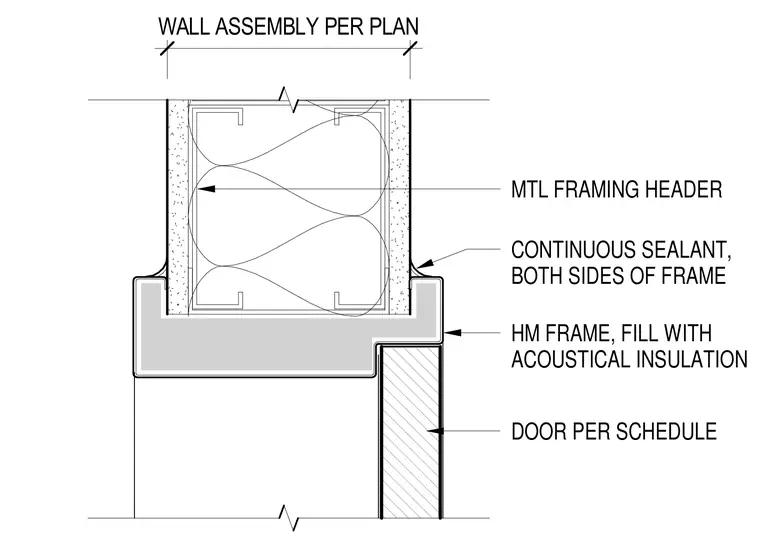

A hollow metal door frame is installed below a metal framing header and a partition wall assembly per plan. The hollow frame cavity is filled with acoustical insulation. Continuous sealant is applied to both sides of the frame where it meets the wall finish. A door per schedule fits within the frame opening.
MTL FRAMING HEADER HM FRAME, FILL WITH ACOUSTICAL INSULATION DOOR PER SCHEDULE CONTINUOUS SEALANT, BOTH SIDES OF FRAME WALL ASSEMBLY PER PLAN
