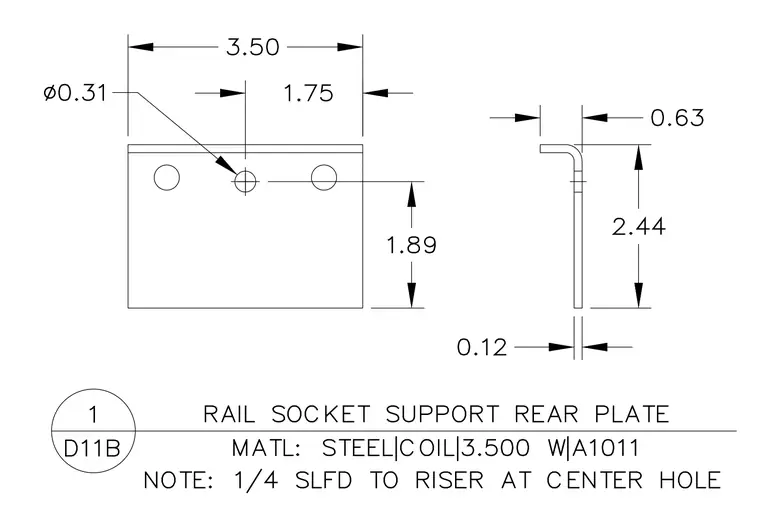

A steel rail socket support rear plate measures 3.50 inches wide by 2.44 inches high with a thickness of 0.12 inches. The plate features three 0.31-inch diameter holes spaced 1.75 inches apart horizontally and centered 1.89 inches from the bottom edge. A note specifies a 0.25-inch connection to the riser at the center hole. The material is specified as ASTM A1011 steel coil.
3.50 1.75 ∅0.31 1.89 0.63 2.44 0.12 RAIL SOCKET SUPPORT REAR PLATE 1 D11B MATL: STEEL|COIL|3.500 W|A1011 NOTE: 1/4 SLFD TO RISER AT CENTER HOLE A V
