Architectural · A-CJMXH

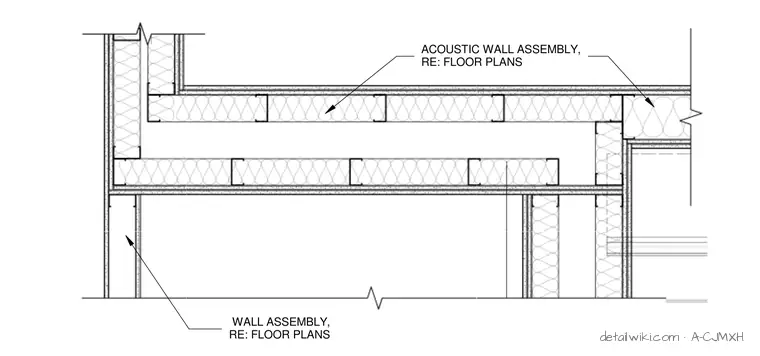

Plan Detail Room 165B

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Floors / Slabs Partitions Walls

Text on the drawing

ACOUSTIC WALL ASSEMBLY, RE: FLOOR PLANS WALL ASSEMBLY, RE: FLOOR PLANS

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
