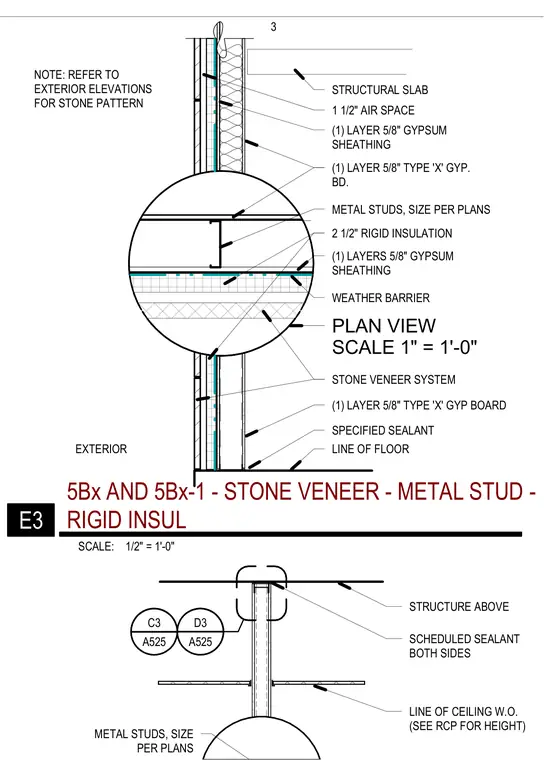

This wall section details a stone veneer system backed by two and one-half inches of rigid insulation, a weather barrier, and one layer of five-eighths-inch gypsum sheathing over cold-formed metal studs sized per plans. The interior finish consists of one layer of five-eighths-inch Type X gypsum board. The assembly interfaces at the top with a structural slab using scheduled sealant on both sides and runs past the line of the ceiling. Specified sealant is applied at joints, and an air space separates the stone from the backup wall.
STRUCTURE ABOVE SCHEDULED SEALANT BOTH SIDES LINE OF CEILING W.O. (SEE RCP FOR HEIGHT) METAL STUDS, SIZE PER PLANS A525 D3 A525 C3 LINE OF FLOOR PLAN VIEW SCALE 1" = 1'-0" SPECIFIED SEALANT METAL STUDS, SIZE PER PLANS (1) LAYER 5/8" TYPE 'X' GYP BOARD STONE VENEER SYSTEM 2 1/2" RIGID INSULATION WEATHER BARRIER NOTE: REFER TO EXTERIOR ELEVATIONS FOR STONE PATTERN (1) LAYER 5/8" TYPE 'X' GYP. BD. (1) LAYER 5/8" GYPSUM SHEATHING (1) LAYERS 5/8" GYPSUM SHEATHING EXTERIOR STRUCTURAL SLAB 1 1/2" AIR SPACE 3 SCALE: 1/2" = 1'-0" E3 5Bx AND 5Bx-1 - STONE VENEER - METAL STUD - RIGID INSUL
