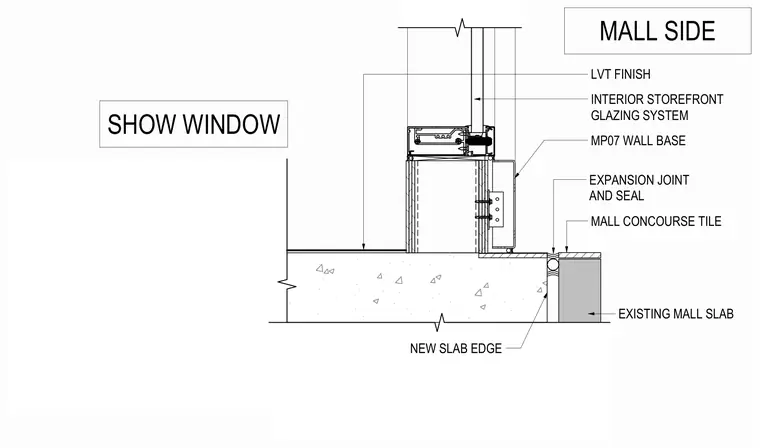

An interior storefront glazing system sits atop a raised base with luxury vinyl tile finish meeting the concrete slab. An expansion joint and seal are installed at the transition between the new slab edge and the existing mall slab beneath the mall concourse tile. An MP07 wall base finishes the exterior face of the storefront curb.
EXISTING MALL SLAB NEW SLAB EDGE MALL CONCOURSE TILE EXPANSION JOINT AND SEAL MP07 WALL BASE INTERIOR STOREFRONT GLAZING SYSTEM LVT FINISH SHOW WINDOW MALL SIDE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
