An international symbol of accessibility features white symbol graphics set against a non-glare blue background color matching blue number 15090 per SAE AMS-STD-595, referencing California Building Code section 11B-703.7.2.1. The sign measures five inches square with a one-quarter-inch-wide white border and one-half-inch corner radii. Mechanical mounting with vandal-resistant fasteners is required, along with an adhesive mounting system when attached to glass glazing. The installation height is set at five feet to the center of the sign from the finished floor.

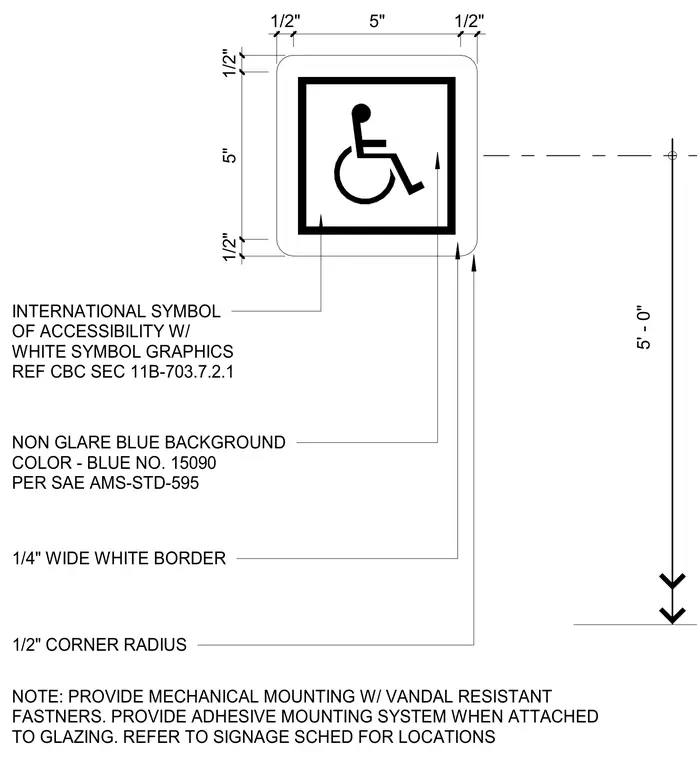

INTERNATIONAL SYMBOL OF ACCESSIBILITY W/ WHITE SYMBOL GRAPHICS REF CBC SEC 11B-703.7.2.1 NON GLARE BLUE BACKGROUND COLOR - BLUE NO. 15090 PER SAE AMS-STD-595 1/4" WIDE WHITE BORDER 1/2" CORNER RADIUS NOTE: PROVIDE MECHANICAL MOUNTING W/ VANDAL RESISTANT FASTNERS. PROVIDE ADHESIVE MOUNTING SYSTEM WHEN ATTACHED TO GLAZING. REFER TO SIGNAGE SCHED FOR LOCATIONS 1/2" 5" 1/2" 1/2" 5" 1/2" 5' - 0"
