A suspended gypsum board soffit assembly hung from an open structural deck with hanger wires and lateral bracing. The framing consists of three and five-eighths inch, twenty-gauge metal studs spaced at sixteen inches on center with a matching metal track. Lateral bracing is achieved using a twenty-gauge metal stud away brace at forty-five degrees from the horizontal plane spaced at four feet on center. The finish layer comprises one layer of five-eighths inch gypsum board over metal framing fastened with bugle head self-drilling drywall screws at twelve inches on center with corner beads provided at edges. A scheduled acoustical ceiling and grid aligns with the soffit edge per the reflected ceiling plan.

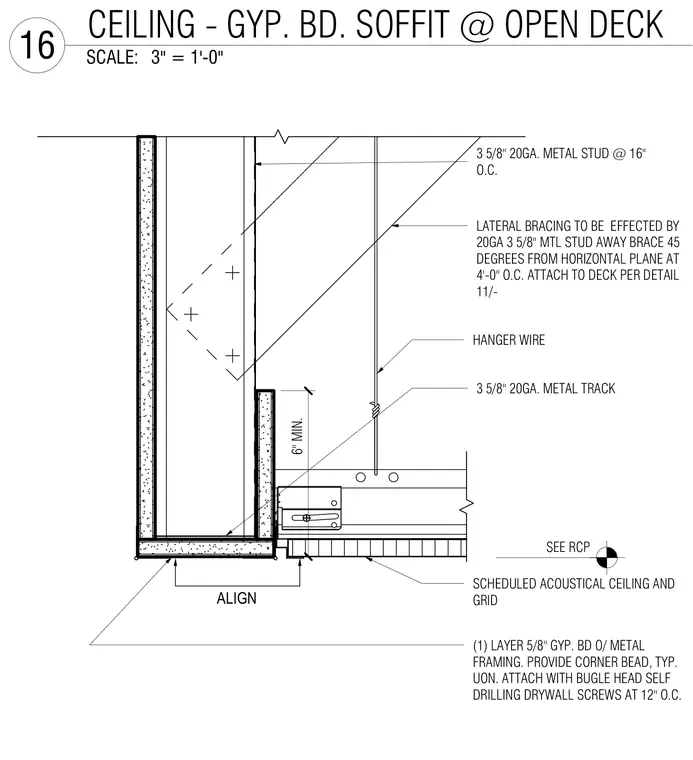

ALIGN SEE RCP (1) LAYER 5/8" GYP. BD O/ METAL FRAMING. PROVIDE CORNER BEAD, TYP. UON. ATTACH WITH BUGLE HEAD SELF DRILLING DRYWALL SCREWS AT 12" O.C. SCHEDULED ACOUSTICAL CEILING AND GRID 6" MIN. HANGER WIRE 3 5/8" 20GA. METAL STUD @ 16" O.C. 3 5/8" 20GA. METAL TRACK LATERAL BRACING TO BE EFFECTED BY 20GA 3 5/8" MTL STUD AWAY BRACE 45 DEGREES FROM HORIZONTAL PLANE AT 4'-0" O.C. ATTACH TO DECK PER DETAIL 11/- SCALE: 3" = 1'-0" 16 CEILING - GYP. BD. SOFFIT @ OPEN DECK
