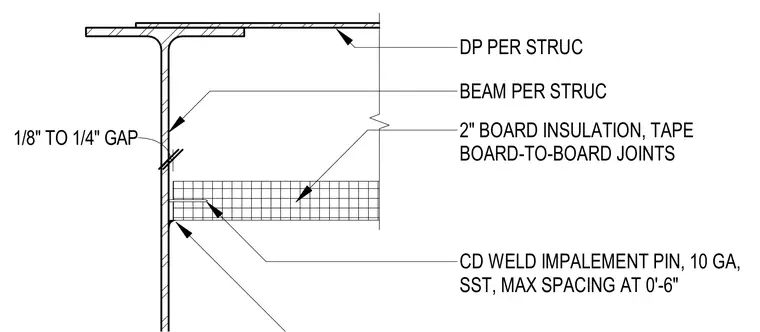

Two-inch board insulation is secured to a structural steel beam using ten gauge stainless steel capacitor discharge welded impalement pins spaced at a maximum of zero feet six inches. All board-to-board joints are taped to maintain the thermal barrier. A one-eighth to one-quarter inch gap is detailed between components as specified by structural requirements. The structural beam and deck profile are installed per structural drawings.
DP PER STRUC 2" BOARD INSULATION, TAPE BOARD-TO-BOARD JOINTS BEAM PER STRUC CD WELD IMPALEMENT PIN, 10 GA, SST, MAX SPACING AT 0'-6" 1/8" TO 1/4" GAP
