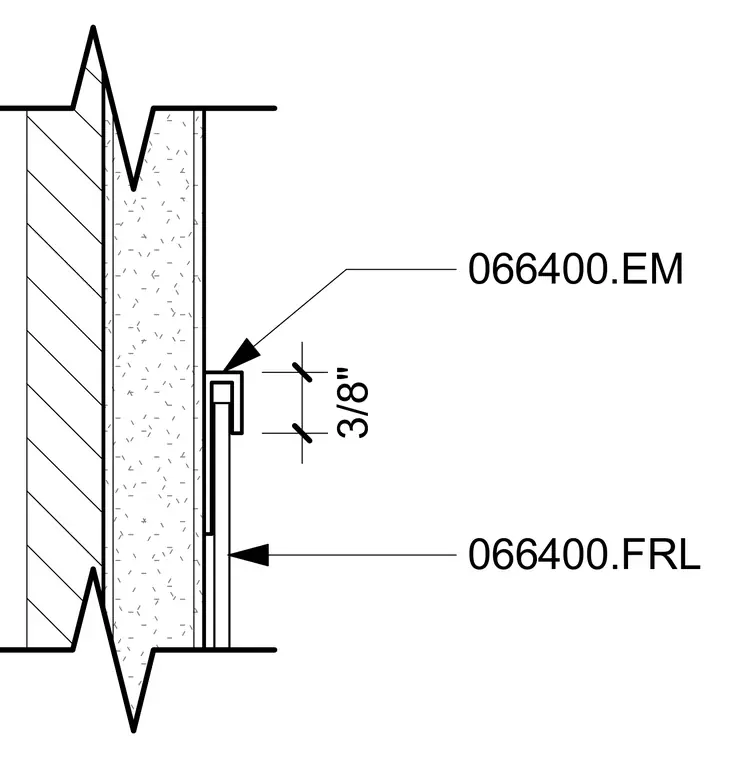

Fiber reinforced laminate panels are installed over a substrate with an edge molding profile maintaining a three-eighths inch dimension. The edge molding component interfaces directly with the panel edge and substrate assembly.
