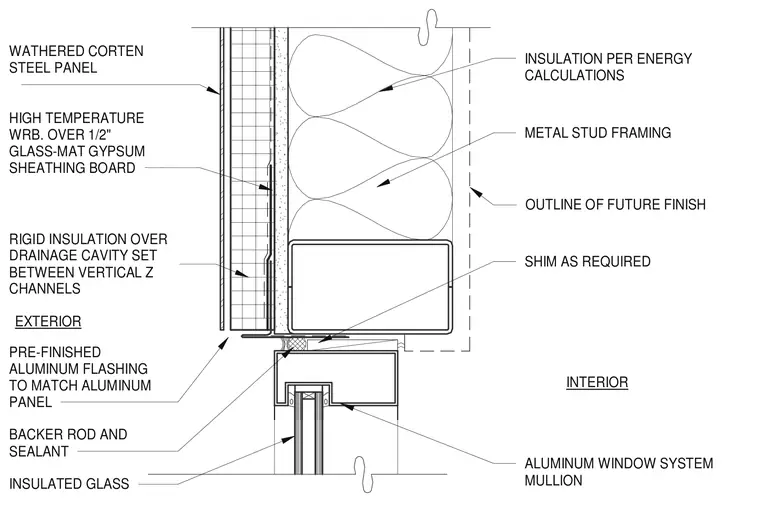

An insulated glass aluminum window system mullion supports the storefront head beneath a pre-finished aluminum flashing. The flashing matches the exterior weathering steel panel and interfaces with backer rod and sealant. The weathering steel panel is installed over rigid insulation and a drainage cavity set between vertical Z channels. A high-temperature water-resistive barrier covers a one-half-inch glass-mat gypsum sheathing board over cold-formed metal stud framing. Insulation is installed per energy calculations within the metal stud framing, adjacent to an outline of future finish.
INSULATION PER ENERGY CALCULATIONS METAL STUD FRAMING SHIM AS REQUIRED INTERIOR OUTLINE OF FUTURE FINISH INSULATED GLASS ALUMINUM WINDOW SYSTEM MULLION EXTERIOR BACKER ROD AND SEALANT PRE-FINISHED ALUMINUM FLASHING TO MATCH ALUMINUM PANEL HIGH TEMPERATURE WRB. OVER 1/2" GLASS-MAT GYPSUM SHEATHING BOARD WATHERED CORTEN STEEL PANEL RIGID INSULATION OVER DRAINAGE CAVITY SET BETWEEN VERTICAL Z CHANNELS
