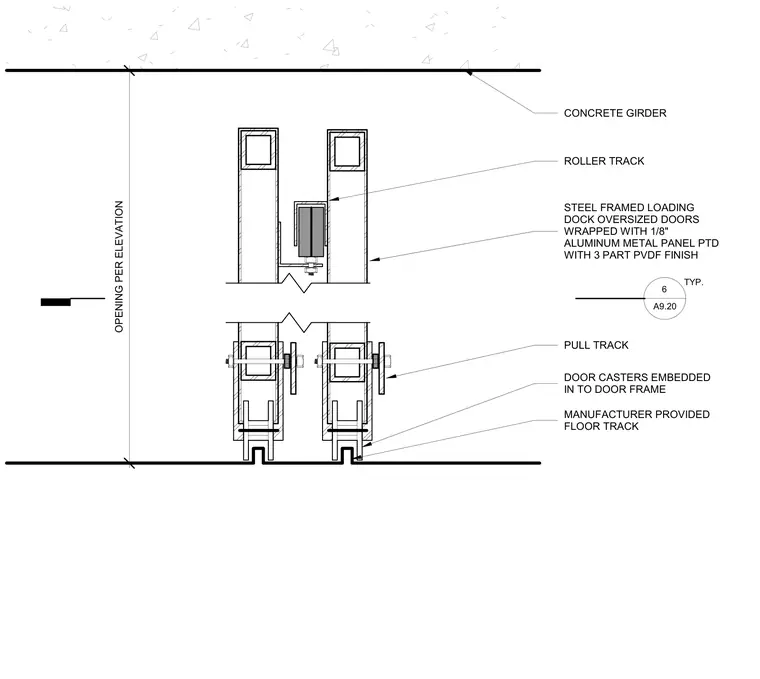

An overhead view details a steel-framed loading dock oversized door assembly situated below a concrete girder. The steel doors are wrapped with one-eighth-inch aluminum metal panels featuring a three-part PVDF finish. A roller track guides the upper assembly, while pull tracks and door casters are embedded directly into the door frames. A manufacturer-provided floor track guides the base of the doors.
CONCRETE GIRDER STEEL FRAMED LOADING DOCK OVERSIZED DOORS WRAPPED WITH 1/8" ALUMINUM METAL PANEL PTD WITH 3 PART PVDF FINISH DOOR CASTERS EMBEDDED IN TO DOOR FRAME PULL TRACK ROLLER TRACK OPENING PER ELEVATION 6 A9.20 TYP. MANUFACTURER PROVIDED FLOOR TRACK
