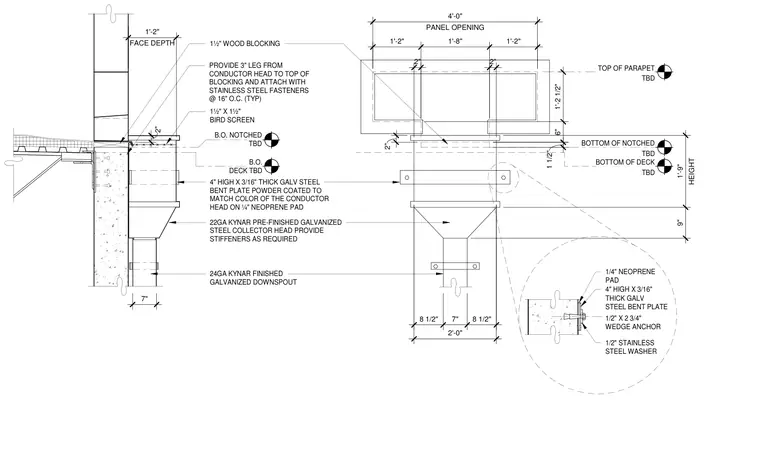

A twenty-two gauge Kynar pre-finished galvanized steel collector head mounts beneath a panel opening at the roof edge. The assembly is secured using a four-inch high by three-sixteenth-inch thick galvanized steel bent plate, powder-coated to match the conductor head, set upon a quarter-inch neoprene pad and anchored with half-inch by two-and-three-quarter-inch wedge anchors with stainless steel washers. A one-and-a-half-inch wood blocking supports the upper transition, featuring a one-and-a-half-inch by one-and-a-half-inch bird screen and a three-inch leg attached with stainless steel fasteners at sixteen inches on center. A twenty-four gauge Kynar finished galvanized downspout extends downward from the collector head with stiffeners provided as required.
1/2" STAINLESS STEEL WASHER 1/4" NEOPRENE PAD 4" HIGH X 3/16" THICK GALV STEEL BENT PLATE 1/2" X 2 3/4" WEDGE ANCHOR BOTTOM OF NOTCHED TBD BOTTOM OF DECK TBD TOP OF PARAPET TBD 1½" WOOD BLOCKING 1½" X 1½" BIRD SCREEN B.O. NOTCHED TBD B.O. DECK TBD 4" HIGH X 3/16" THICK GALV STEEL BENT PLATE POWDER COATED TO MATCH COLOR OF THE CONDUCTOR HEAD ON ¼" NEOPRENE PAD 22GA KYNAR PRE-FINISHED GALVANIZED STEEL COLLECTOR HEAD PROVIDE STIFFENERS AS REQUIRED 24GA KYNAR FINISHED GALVANIZED DOWNSPOUT PROVIDE 3" LEG FROM CONDUCTOR HEAD TO TOP OF BLOCKING AND ATTACH WITH STAINLESS STEEL FASTENERS @ 16" O.C. (TYP) FACE DEPTH 1'-2" 2" 7" 1'-2" 1'-8" 1'-2" 2" 2" PANEL OPENING 4'-0" 2" 6" 1'-2 1/2" 1 1/2" 9" HEIGHT 1'-9" 8 1/2" 7" 8 1/2" 2'-0"
