Architectural · A-CHGZ5

Accessible Parking Sign

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Columns Walls Anchors / Embeds

Connections

Bolted Connection Embed Plate

About this detail

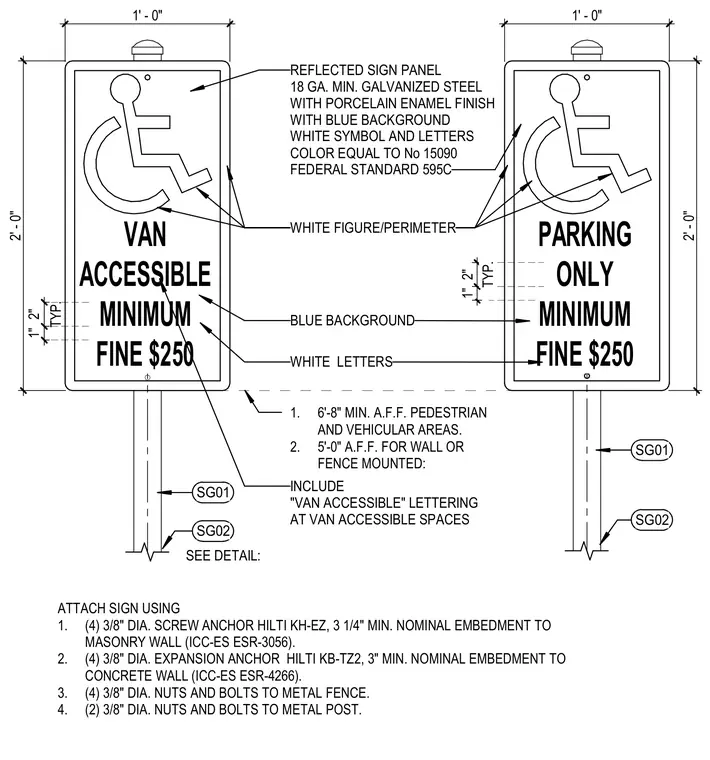

Accessible parking sign panels consist of eighteen gauge minimum galvanized steel with a porcelain enamel finish, featuring a blue background with white symbols and letters matching Federal Standard 595C color number 15090. The signs are mounted with four three-eighths-inch diameter Hilti KH-EZ screw anchors with three and one-quarter inches minimum nominal embedment into masonry walls per ICC-ES ESR-3056, four three-eighths-inch diameter Hilti KB-TZ2 expansion anchors with three inches minimum nominal embedment into concrete walls per ICC-ES ESR-4266, four three-eighths-inch diameter nuts and bolts to metal fences, or two three-eighths-inch diameter nuts and bolts to metal posts. Mounting heights require a minimum of six feet eight inches above finished floor for pedestrian and vehicular areas, and five feet above finished floor for wall or fence mounting.
