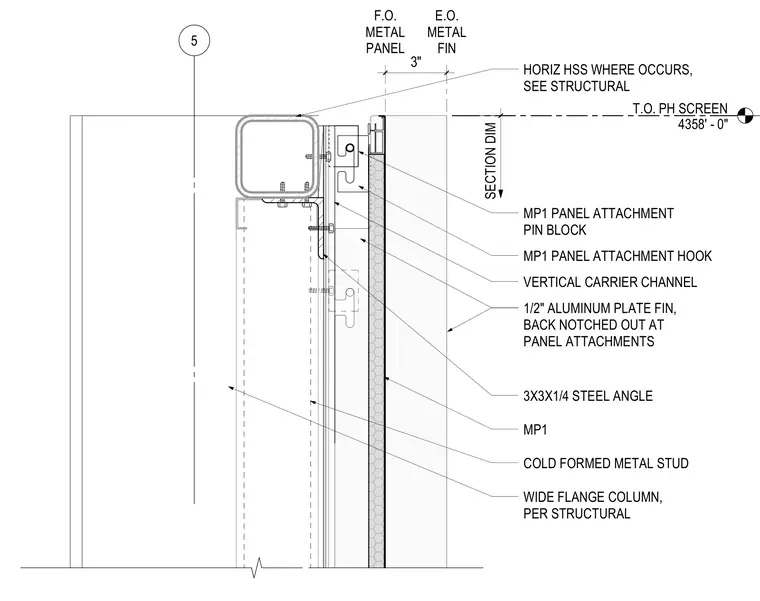

This wall section details the top termination of an MP1 metal panel assembly at a penthouse screen. The assembly is supported by a wide flange steel column and cold-formed metal studs with a horizontal hollow structural section and a 3x3x1/4 steel angle. A 1/2-inch aluminum plate fin with a back notch accommodates the panel attachments. The metal panel is secured using MP1 panel attachment hooks and pin blocks.
5 T.O. PH SCREEN 4358' - 0" WIDE FLANGE COLUMN, PER STRUCTURAL VERTICAL CARRIER CHANNEL 1/2" ALUMINUM PLATE FIN, BACK NOTCHED OUT AT PANEL ATTACHMENTS MP1 PANEL ATTACHMENT PIN BLOCK MP1 PANEL ATTACHMENT HOOK 3" E.O. METAL FIN F.O. METAL PANEL SECTION DIM HORIZ HSS WHERE OCCURS, SEE STRUCTURAL 3X3X1/4 STEEL ANGLE MP1 COLD FORMED METAL STUD
