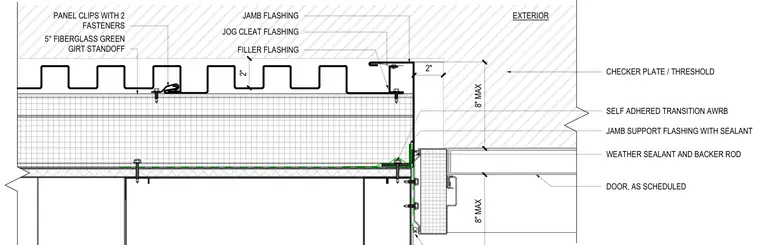

A door jamb connection at an exterior insulated metal panel wall consists of five-inch fiberglass green girt standoffs anchored to support panel clips with two fasteners each. Custom flashing includes jog cleat flashing, filler flashing, and a jamb support flashing set in sealant. A self-adhered air and water resistive barrier transition wraps the jamb interface, finished with a weather sealant and backer rod at the door frame. An exterior checker plate threshold finishes the base detail adjacent to the scheduled door.
WEATHER SEALANT AND BACKER ROD SELF ADHERED TRANSITION AWRB JAMB FLASHING JOG CLEAT FLASHING FILLER FLASHING PANEL CLIPS WITH 2 FASTENERS 5'' FIBERGLASS GREEN GIRT STANDOFF DOOR, AS SCHEDULED JAMB SUPPORT FLASHING WITH SEALANT 8" MAX 8" MAX EXTERIOR CHECKER PLATE / THRESHOLD 2" 2"
