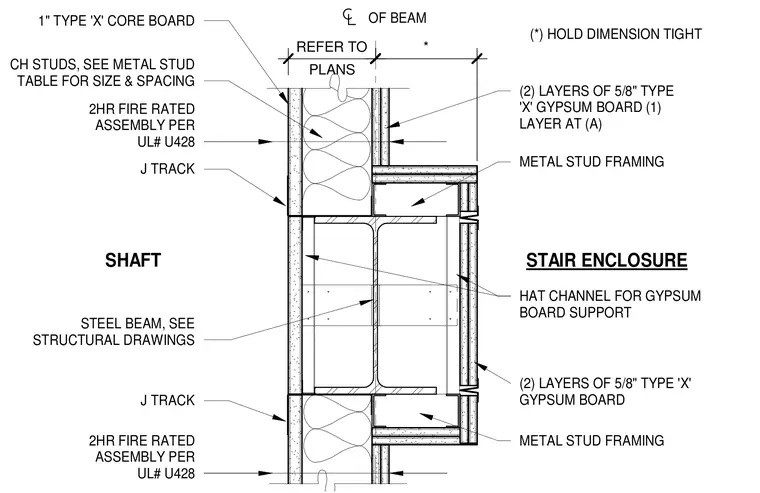

A two-hour fire-rated shaft wall assembly conforming to UL Design Number U428 intersects a structural steel beam. The shaft side features one inch Type X core board secured with J track and CH studs sized per the metal stud table. The stair enclosure side incorporates metal stud framing backed by hat channels for gypsum board support. Two layers of five-eighths-inch Type X gypsum board are applied to the framing on the stair enclosure side. A tight dimensional tolerance is maintained at the beam centerline per structural drawings.
SHAFT STEEL BEAM, SEE STRUCTURAL DRAWINGS OF BEAM HAT CHANNEL FOR GYPSUM BOARD SUPPORT 2HR FIRE RATED ASSEMBLY PER UL# U428 (*) HOLD DIMENSION TIGHT 1" TYPE 'X' CORE BOARD METAL STUD FRAMING STAIR ENCLOSURE PLANS REFER TO * 2HR FIRE RATED ASSEMBLY PER UL# U428 (2) LAYERS OF 5/8" TYPE 'X' GYPSUM BOARD METAL STUD FRAMING (2) LAYERS OF 5/8" TYPE 'X' GYPSUM BOARD (1) LAYER AT (A) CH STUDS, SEE METAL STUD TABLE FOR SIZE & SPACING J TRACK J TRACK
