A primary drywall suspension system hangs from the existing structure above via twelve-gauge galvanized hanger wires spaced at four feet on center with seismic wire bracing at eight inches on center. A grid load transfer bracket by USG or equivalent transfers loads, and additional twelve-gauge hanger wires are added within six inches if the primary wire does not fall within six inches of a light fixture. A cross-braced twelve-gauge hanger wire stabilizes the drywall suspension system. The assembly terminates at the perimeter with a two-inch by three-quarter-inch typical wall angle secured with a one-eighth-inch pop rivet at all members on one wall, leaving a three-quarter-inch space at the opposing wall.

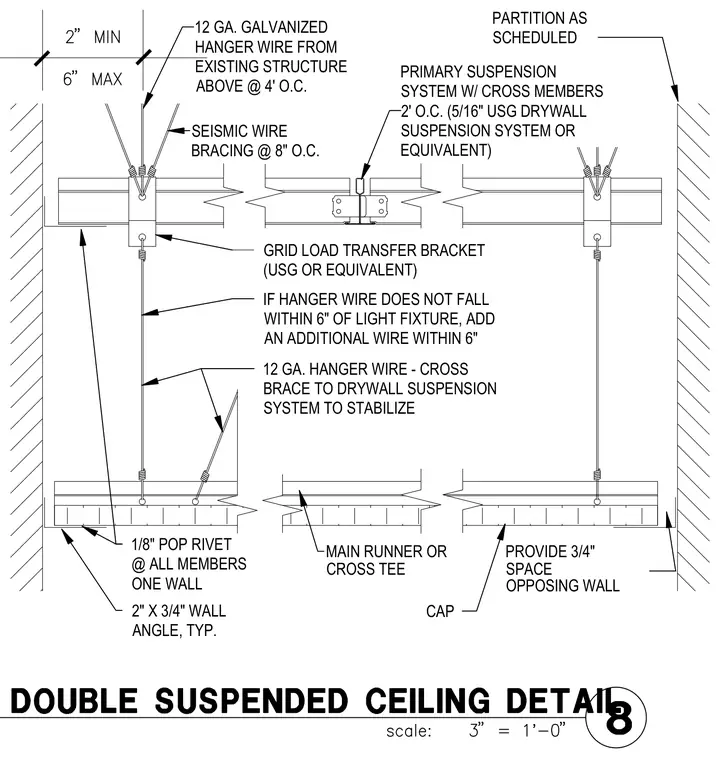

GRID LOAD TRANSFER BRACKET (USG OR EQUIVALENT) IF HANGER WIRE DOES NOT FALL WITHIN 6" OF LIGHT FIXTURE, ADD AN ADDITIONAL WIRE WITHIN 6" 12 GA. HANGER WIRE - CROSS BRACE TO DRYWALL SUSPENSION SYSTEM TO STABILIZE 1/8" POP RIVET @ ALL MEMBERS ONE WALL 2" X 3/4" WALL ANGLE, TYP. MAIN RUNNER OR CROSS TEE CAP PROVIDE 3/4" OPPOSING WALL PARTITION AS SCHEDULED PRIMARY SUSPENSION SYSTEM W/ CROSS MEMBERS 2' O.C. (5/16" USG DRYWALL SUSPENSION SYSTEM OR EQUIVALENT) 12 GA. GALVANIZED HANGER WIRE FROM EXISTING STRUCTURE ABOVE @ 4' O.C. SEISMIC WIRE BRACING @ 8" O.C. SPACE
