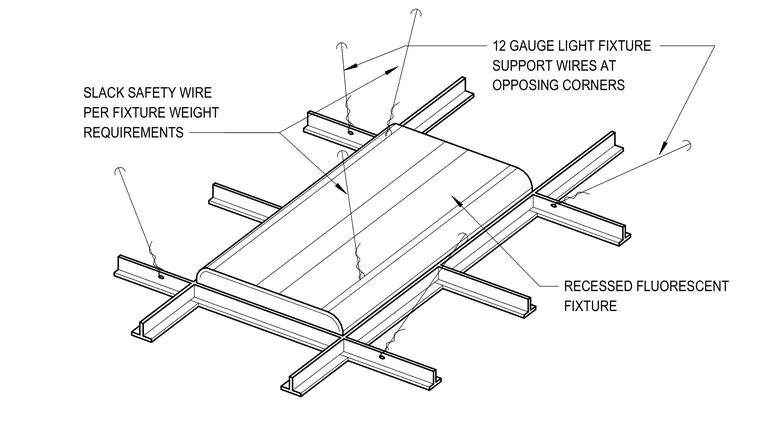

A recessed fluorescent fixture is supported within a suspended ceiling grid using twelve gauge support wires attached at opposing corners. Additional slack safety wires are provided per fixture weight requirements to prevent falling during seismic events.
RECESSED FLUORESCENT FIXTURE 12 GAUGE LIGHT FIXTURE SUPPORT WIRES AT OPPOSING CORNERS SLACK SAFETY WIRE PER FIXTURE WEIGHT REQUIREMENTS
