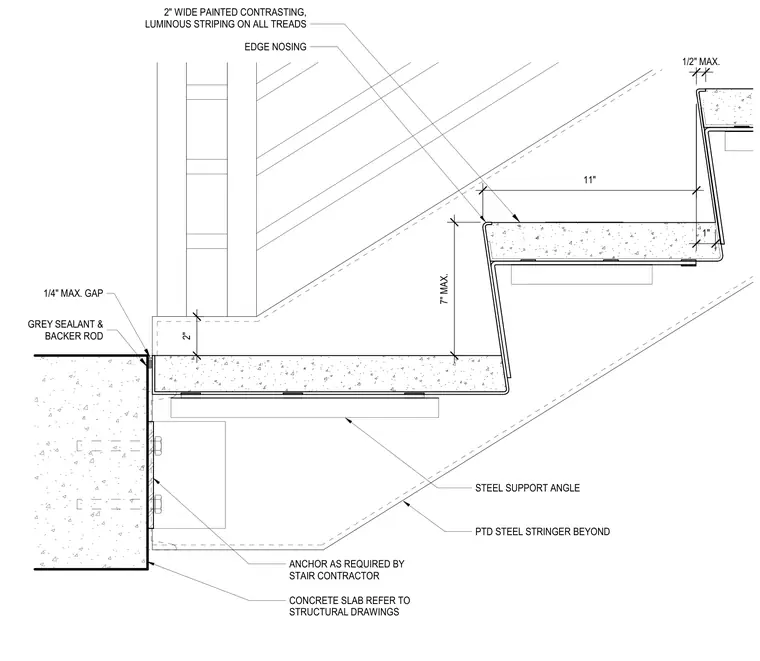

The steel stair stringer ties into a painted steel support angle anchored back to the structural concrete slab. Treads feature an edge nosing with a two-inch wide painted contrasting luminous striping, with seven-inch maximum risers and eleven-inch treads. A quarter-inch maximum gap between the stair landing and the concrete slab is sealed with grey sealant and backer rod. Anchors are provided as required by the stair contractor.
PTD STEEL STRINGER BEYOND EDGE NOSING STEEL SUPPORT ANGLE 2" WIDE PAINTED CONTRASTING, LUMINOUS STRIPING ON ALL TREADS 7" MAX. 2" 11" 1" CONCRETE SLAB REFER TO STRUCTURAL DRAWINGS 1/2" MAX. GREY SEALANT & BACKER ROD 1/4" MAX. GAP ANCHOR AS REQUIRED BY STAIR CONTRACTOR
