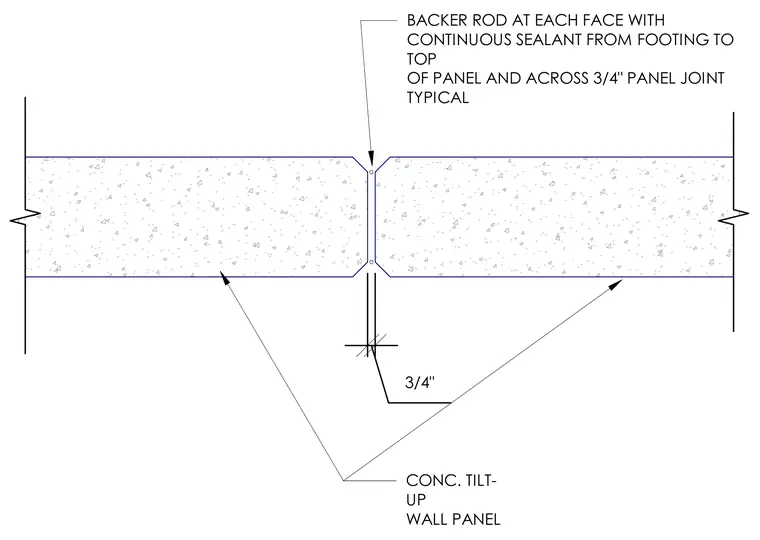

Adjacent concrete tilt-up wall panels form a three-quarter inch vertical joint sealed continuously from the footing to the top of the panel. A backer rod is installed at each face of the wall behind a continuous bead of sealant spanning across the joint.
BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 3/4" V
