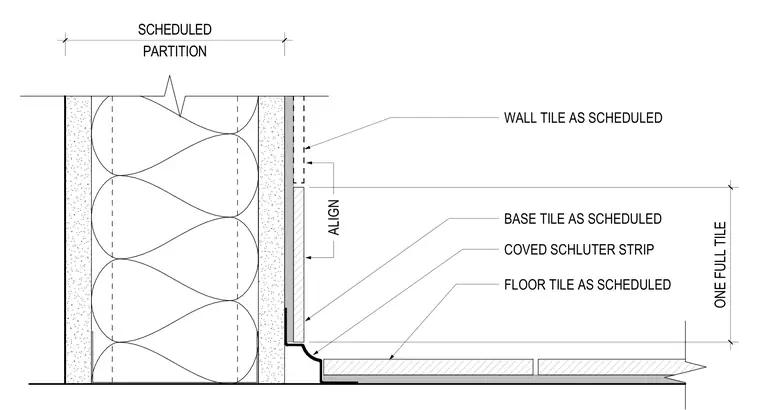

A scheduled partition receives wall tile and base tile aligned with the flooring layout. A coved Schluter strip finishes the transition between the vertical base tile and the horizontal floor tile as scheduled. One full tile height is maintained at the base transition.
WALL TILE AS SCHEDULED PARTITION SCHEDULED BASE TILE AS SCHEDULED FLOOR TILE AS SCHEDULED ONE FULL TILE ALIGN COVED SCHLUTER STRIP
