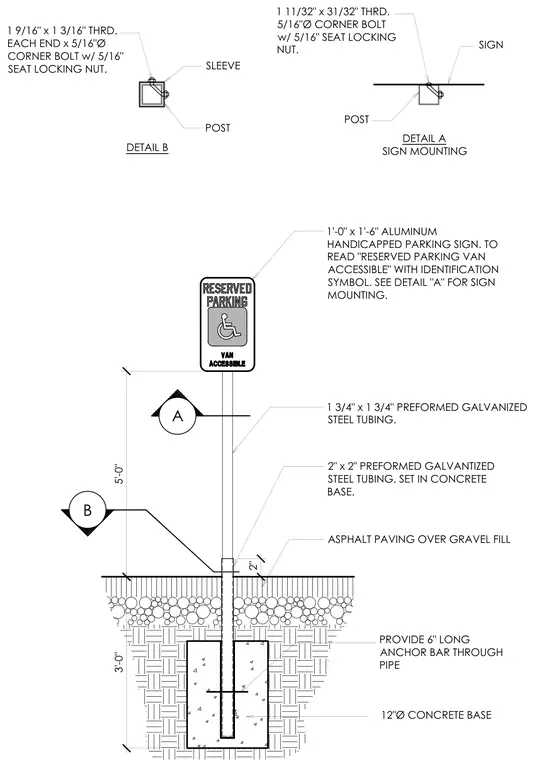

A twelve-inch diameter concrete base anchors a two-inch by two-inch preformed galvanized steel tubing post, which extends upward through asphalt paving over gravel fill. A six-inch long anchor bar passes through the pipe inside the concrete footing. A one-and-three-quarter-inch by one-and-three-quarter-inch preformed galvanized steel tubing insert or sleeve connects via corner bolts with seat locking nuts. A one-foot by one-and-a-half-foot aluminum handicapped parking sign mounts to the post.
5'-0" 3'-0" POST SLEEVE 1 9/16" x 1 3/16" THRD. EACH END x 5/16"Ø CORNER BOLT w/ 5/16" SEAT LOCKING NUT. 1 11/32" x 31/32" THRD. 5/16"Ø CORNER BOLT w/ 5/16" SEAT LOCKING NUT. SIGN POST DETAIL B DETAIL A SIGN MOUNTING 12"Ø CONCRETE BASE PROVIDE 6" LONG ANCHOR BAR THROUGH PIPE ASPHALT PAVING OVER GRAVEL FILL 2" 2" x 2" PREFORMED GALVANTIZED STEEL TUBING. SET IN CONCRETE BASE. 1 3/4" x 1 3/4" PREFORMED GALVANIZED STEEL TUBING. 1'-0" x 1'-6" ALUMINUM HANDICAPPED PARKING SIGN. TO READ "RESERVED PARKING VAN ACCESSIBLE" WITH IDENTIFICATION SYMBOL. SEE DETAIL "A" FOR SIGN MOUNTING. B A
