Curtain Wall Head Detail at HSS Structural Tube

Materials

Steel Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Walls Ceilings Waterproofing / Flashing

Connections

HSS Connection

About this detail

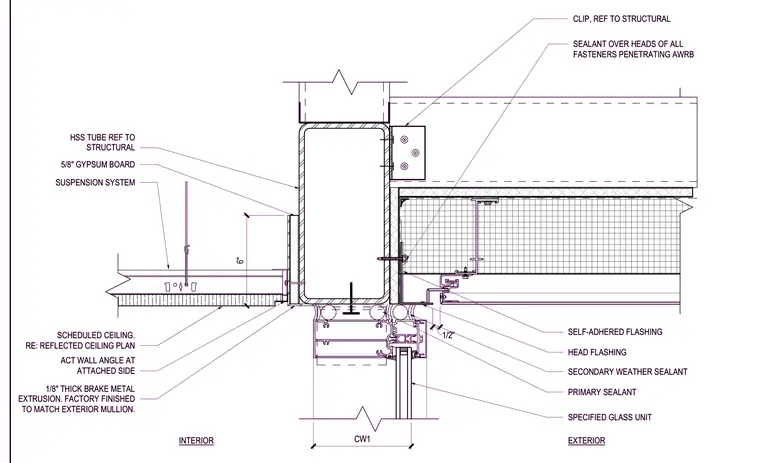

A curtain wall head condition intersects a structural hollow structural section steel tube. The exterior glazed assembly incorporates a specified glass unit, primary and secondary sealants, self-adhered flashing, and a 1/8-inch thick brake metal extrusion factory finished to match the exterior mullion. A structural clip secures the assembly to the HSS tube, with sealant applied over the heads of all fasteners penetrating the air and water-resistive barrier. The interior side features a 5/8-inch gypsum board ceiling hung from a suspension system, finished with an acoustical ceiling tile wall angle attached to the framing.
